WIRING DEVICES

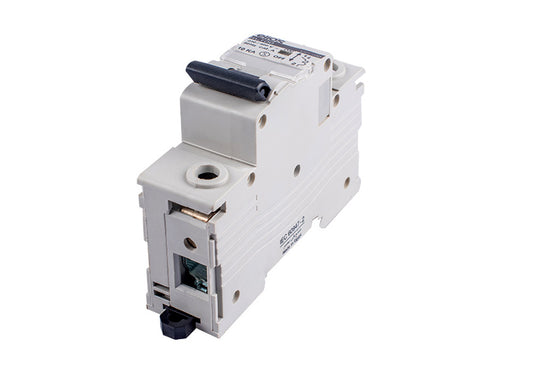

POLE NO.: 1 RATED VOLTAGE: AC 400/230V RATED CURRENT (A): 10.16.20.25.32.40.50.63.100 TRIPPING CURVE : B, C, D RATED SHORT - CIRCUIT CAPACITY (ICN) : 6000A RATED FREQUENCY: 50/60Hz ENERGY LIMITING CLASS: 3 RATED IMPULSE WITH STAND VOLTAGE: 6.2Kv ELECTRO – MECHANICAL ENDURANCE: 4000 CONTACT POSITION INDICATION CONNECTIONTERMINAL:• Screw terminal• Pillar terminal with clamp...

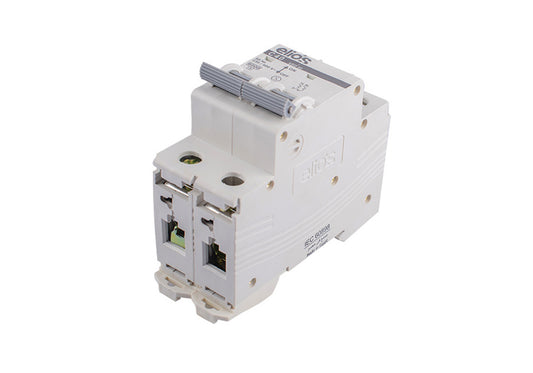

POLE NO.: 2 RATED VOLTAGE: AC 400/230V RATED CURRENT (A): 32.40.50.63 TRIPPING CURVE : B, C, D RATED SHORT - CIRCUIT CAPACITY (ICN) : 6000A RATED FREQUENCY: 50/60Hz ENERGY LIMITING CLASS: 3 RATED IMPULSE WITH STAND VOLTAGE: 6.2Kv ELECTRO – MECHANICAL ENDURANCE: 4000 CONTACT...

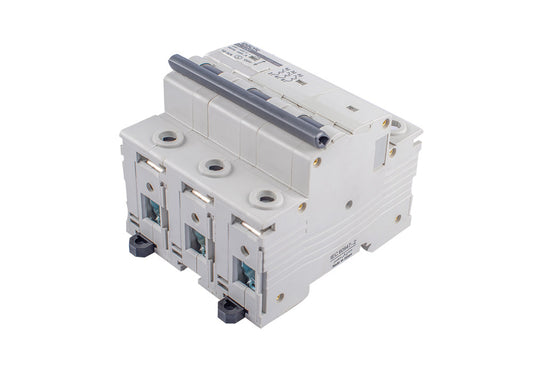

POLE NO.: 3 RATED VOLTAGE: AC 400/230V RATED CURRENT (A): 32.40.50.63.100 TRIPPING CURVE : B, C, D RATED SHORT - CIRCUIT CAPACITY (ICN) : 6000A RATED FREQUENCY: 50/60Hz ENERGY LIMITING CLASS: 3 RATED IMPULSE WITH STAND VOLTAGE: 6.2Kv ELECTRO – MECHANICAL ENDURANCE: 4000 CONTACT POSITION INDICATION CONNECTION TERMINAL:• Screw terminal • Pillar terminal...

2x16A socket-outlet

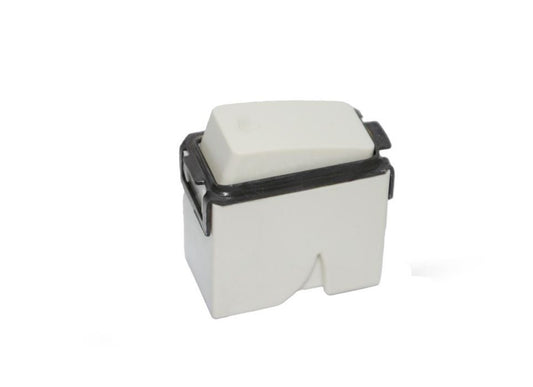

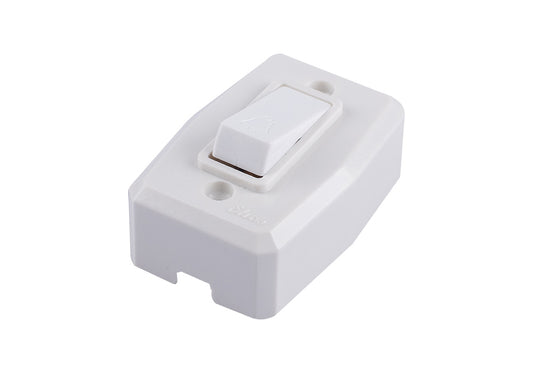

Single pole bell push button 2A

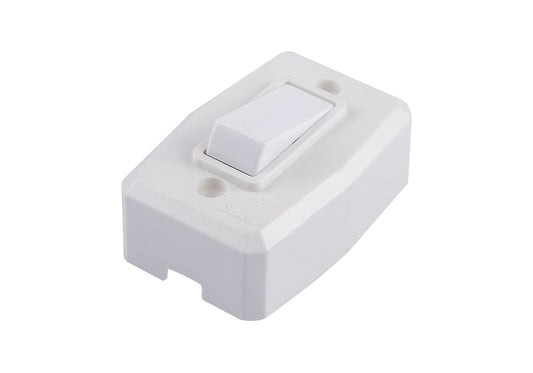

Single pole one/two- way switch 6A

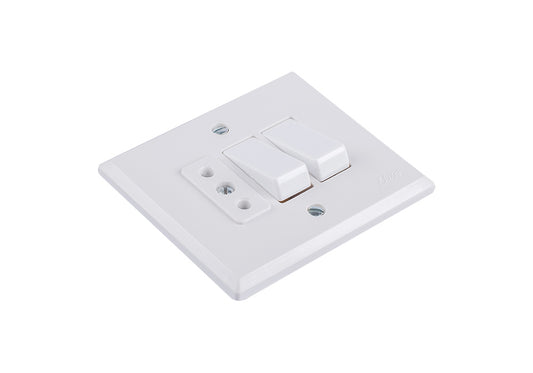

Two Single pole one-way switches & one 2x10A socket-outlet 6A for the switches 10A for the socket

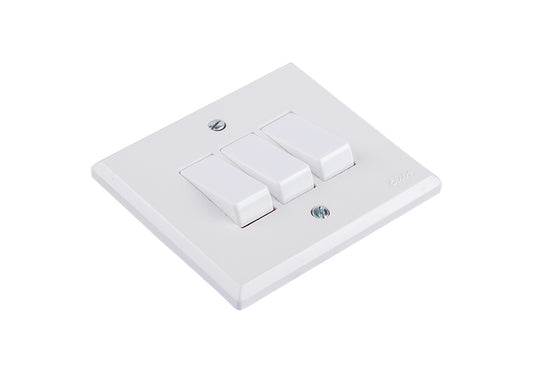

Three single pole one-way switches 6A

Single pole one-way switch & one 2x10A socket-outlet 6A for the switch 10A for the socket

2x16A socket-outlet 16A

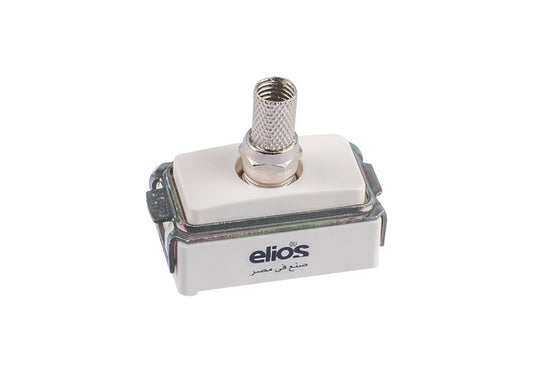

Satellite coaxial socket-outlet

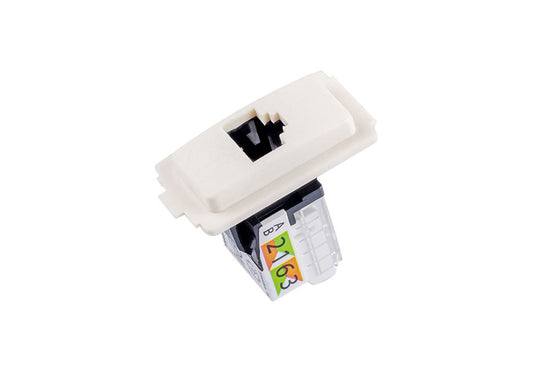

RJ 45 Socket Cat. 6e

RJ 11 telephone socket 4 terminals

2X16A SOCKET

2x16A Euro-American Standard Socket

Single pole bell push button 2A

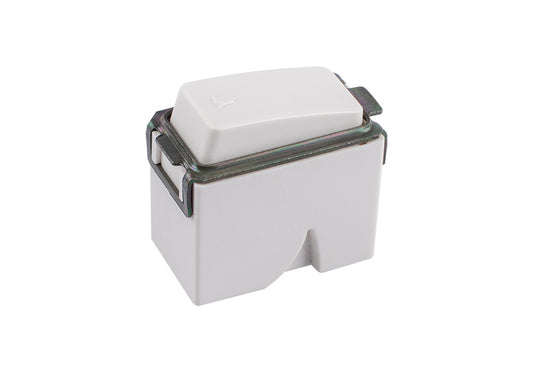

Single pole two-way switch 16A

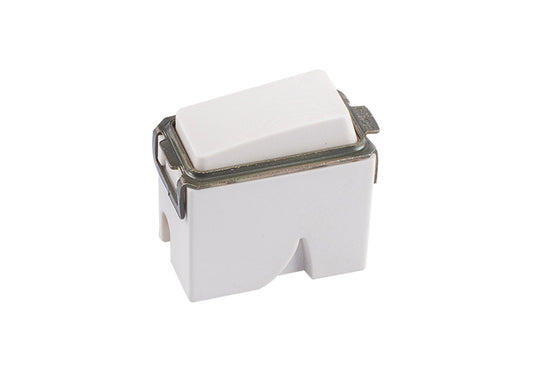

Single pole one-way switch 16A
